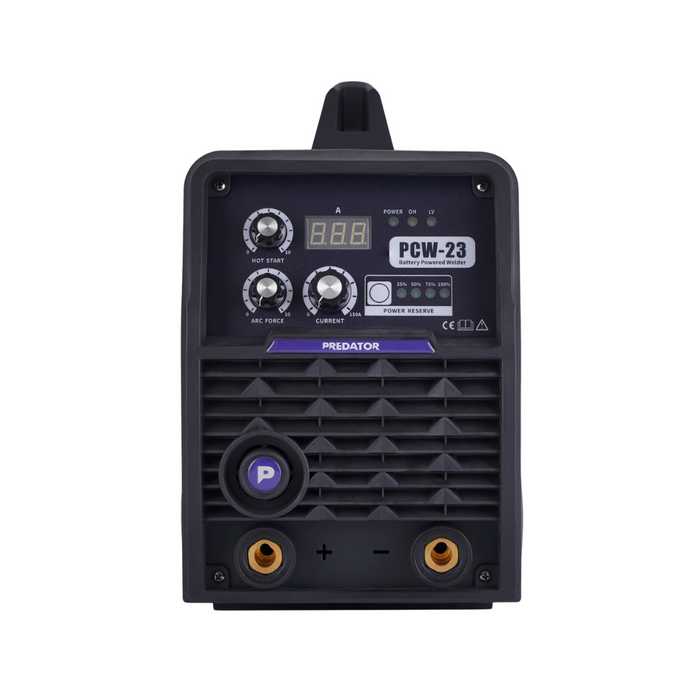

Battery Powered Welder [Inverter Cordless 3.7KW PCW-23]

Code: PPT045

Discover our heavy-duty design 2400WH battery powered 150A stick welder

With our battery stick welder PCW-23, welding jobs like repair welding in the mountains, installations in the countryside or welding operations at exposed locations become much easier than ever before.

After fully charging, it can weld 41 pieces of 3.25 mm electrodes or 85 pieces of 2.5mm electrodes.

Features:

  • Completely battery-powered system - no long power cords, heavy cables or generators necessary
  • 3.25mm electrodes can weld up to 41 pieces
  • 2.5mm electrodes can weld up to 85 pieces
  • Internal lithium battery cells we are working with CATL. CATL battery cells are used widely in car industry, brands such as BMW, Volkswagen, Toyota and Audi
  • BSCI & ISO 9001 approved
  • Hot-start & arc force ensures excellent welding performance
  • Battery power indicator Under[1]voltage, over-heating alarm
  • 12 months warranty
Charging Voltage  110 - 240V
Rated Frequency 50/60 Hz
Cycle Times 1500 Cycles
Battery voltage 48V
Charge time  3.5 - 4.0 Hours
Battery capacity  2400 WH
Welding current Range  10 - 015OA
Welding Performance  3.2mm 41 pcs
Size 46*21*35
Machine weight  23Kg
